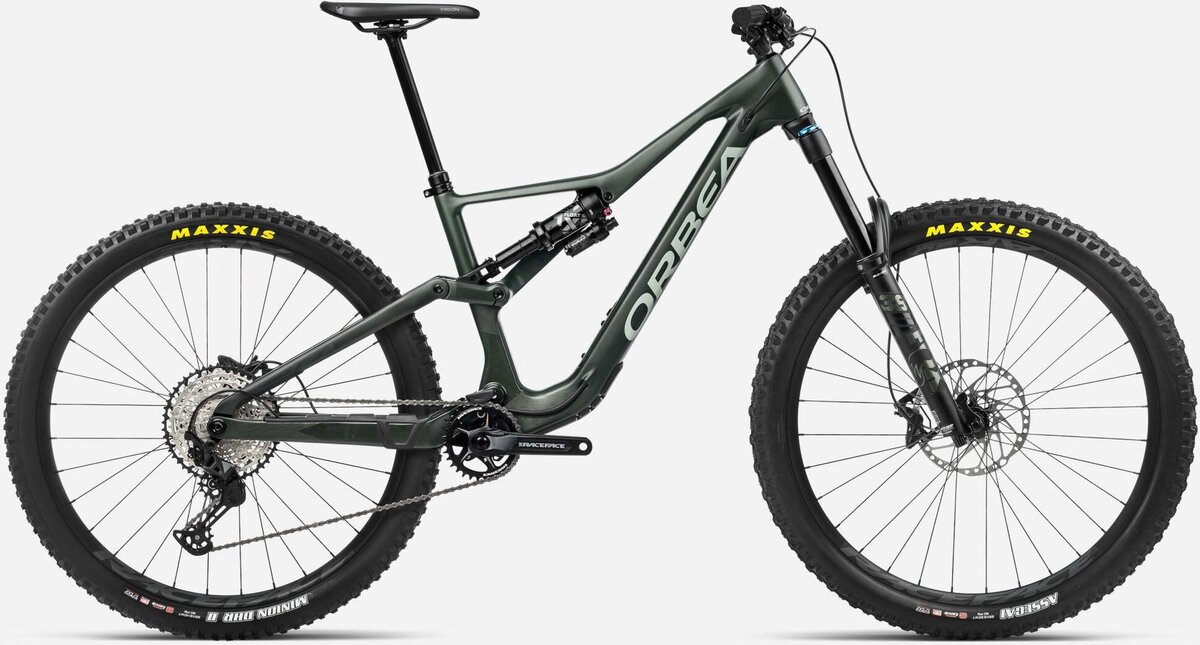

Orbea RALLON M20

Rallon was forged on the racecourse, but is always ready for fun outside of the tape and loves fast laps with friends, high-5's and near misses. Forget limits, forget distractions, just focus on fast(er).

FRAME
Orbea Monocoque Race Carbon. Advanced Dynamics 167mm suspension technology. 29" wheels.Concentric Boost 12x148 rear axle. Pure Enduro geometry. Internal cable routing. ISCG05

SHOCK
Fox FLOAT X Performance 2-Position Evol LV custom tune 230x62.5mm

FORK
Fox 38 Float Performance 170 Grip 3-Position QR15x110

HEADSET
Acros Alloy 1-1/8 - 1-1/2" Integrated

DRIVETRAIN
CRANKSET
Race Face Aeffect 32t

SHIFTERS
Shimano SLX M7100 I-Spec EV

CASSETTE
Shimano CS-M7100 10-51t 12-Speed

REAR DERAILLEUR
Shimano SLX M7100 SGS Shadow Plus

CHAIN
Shimano M6100

CHAINGUIDE
e*thirteen CL55 30-36t black

COCKPIT
HANDLEBAR
OC Mountain Control MC30, Rise20, Width 800

STEM
Alloy 3D forged, 35mm interface, -7º

BRAKES
BRAKES
Shimano M6120 Hydraulic Disc

BRAKES CONFIGURATION
WHEELS
WHEELS
Race Face AR 30c Tubeless Ready

TYRES
Maxxis Assegai 2.50" WT FB 120 TPI 3C Maxx Terra EXO+ TR

TYRES
Maxxis Minion DHR II 2.40" WT FB 120 TPI 3C Maxx Terra Exo+ TR

FRONT WHEEL AXLE
N/A

COMPONENTS
SEATPOST
OC Mountain Control MC21, 31.6mm, Dropper

SEATPOST LEVER
Shimano SL-MT500 I-Spec EV

SADDLE
ERGON SM Enduro

GRIPS
OC Lock On

ACCESSORIES
STORAGE
Accesories Containers

TOOLS
OC Rear lever (Hex 6 & valve core removal)
