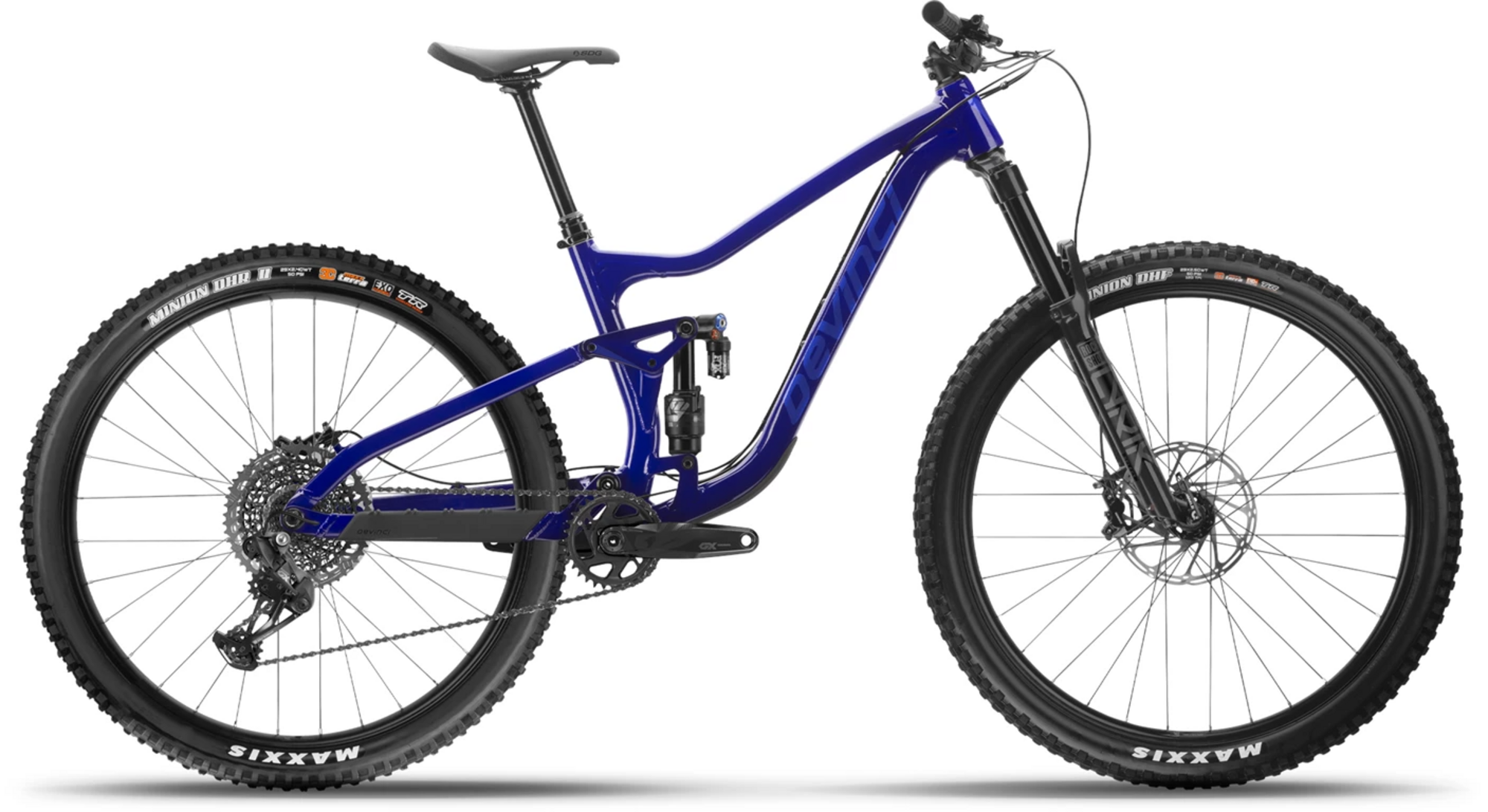

Devinci Troy GX 12s Fox
$3,709.99
$5,299.99
Details
ALL MOUNTAIN
One bike, zero excuses. The Troy is a quiver killer. In its fourth-generation, the 140mm travel frame gets a svelter rear-end with improved clearance and ample room for up to 2.6? tires. It also has stouter, double-row linkage bearings and refined geometry with size-specific chainstay lengths and longer reaches on all sizes—results of serious testing around the globe. If you’re looking for a trusty rig to take on everything your skills can handle, and maybe some stuff they can’t yet, the Troy is your bike.
| S | M | L | XL | |
|---|---|---|---|---|
| A - ST (MM) | 400 | 420 | 445 | 495 |
| B - SA (DEG) | 77.6 | 77.5 | 76.9 | 76.4 |
| C - HA (DEG) | 65 | 65 | 65 | 65 |
| D - TT (MM) | 574 | 598 | 626 | 655 |
| E - REACH (MM) | 440 | 460 | 480 | 500 |
| F - CS (MM) | 435 | 435 | 440 | 445 |
| G - WB (MM) | 1190 | 1215 | 1244 | 1273 |
| H - BBH (MM) | 341 | 341 | 341 | 341 |
| I - SOH (MM) | 735 | 736 | 755 | 788 |
| J - STACK (MM) | 612 | 621 | 631 | 640 |
| K - HT (MM) | 95 | 105 | 115 | 125 |
| RIDER HEIGHT (CM) | 160-170 | 169-179 | 178-188 | 187-198 |
| Fox Transfer (MM) | 150 | 175 | 175 | 175 |
| RS Reverb (MM) | 150 | 175 | 200 | 200 |
Specs
| Hubs |
Front: Factor XD601SB/A | 6bolts | TA 15x110mm Rear: Factor XDH62SB/A | 6bolts | TA 12x157mm | XD |
|---|---|
| Rims | RaceFace AR30 | 30mm inner | TR |
| Tires |
FRONT: Maxxis Minion DHF | 29x2.5WT | 3C | Exo+ | TR | MaxxTerra REAR: Maxxis Minion DHRII | 29x2.4wt | 3C | Exo+ | TR | MaxxTerra |
| Spokes | Sapim Stainless 14G w/Nylok |
| Fork | RockShox Lyrik Select+ Charger 3 RC2 Db 150 | 1T | 44Offset |
| Frame | Aluminum Optimum G04 140mm |
| Crankset | SRAM GX Eagle | DUB | 32T | SuperBoost 157 |
| Rear Shock | Fox Float X2 P.Elite Trunnion | 0.3VSpacer | 185x52.5 |
| Bottom Bracket | SRAM DUB | BSA | 73mm |
| Stem | V2 Pro | B:35mm | L:40mm | 0° |
| Rotors | SRAM Centerline | 200mm |
| Saddle | SDG FLY MTN |
| Seatpost | TranzX | 34.9mm | 1x Lever |
| Handlebars | RaceFace Aeffect R35 | B:35mm | R:20mm | W:780mm |
| Brakes | SRAM G2 RS | 4 PIstons |
| Tape/Grips | Devinci Performance | w/lock-on |
* Subject to change without notice.
Part Numbers
| Option | UPC | MPN | Store SKU |
|---|---|---|---|
| Alien Blue / Large / 29-inch | 883385227138 | FV230434A5 | 210000036412 |
| Alien Blue / Medium / 29-inch | 883385227121 | FV230433A5 | 210000036108 |
