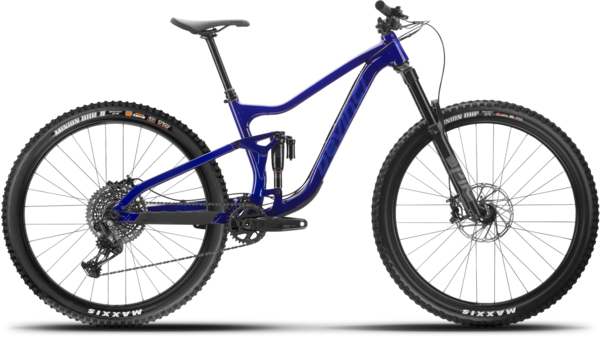

Devinci Troy GX 12s

Devinci Troy GX 12s
  • Color: Alien Blue
  • Color: Goldland
$3,639.00 - $3,639.99
$5,199.00 - $5,299.99
Color:
Size: Select size
Please select options Unavailable

Details

One bike, zero excuses. The Troy is a quiver killer. In its fourth generation, the 140mm travel frame gets a svelter rear-end with improved clearance and ample room for up to 2.6? tires. It also has stouter, double-row linkage bearings and refined geometry with size-specific chainstay lengths and longer reaches on all sizes-results of serious testing around the globe. If you're looking for a trusty rig to take on everything your skills can handle, and maybe some stuff they can't yet, the Troy is your bike.

Sizes:
SIZESmallMediumLargeX-Large
A - Seat Tube (MM) | HI/LO 400 / 400 420 / 420 445 / 445 495 / 495
B - Seat Tube Angle (°) | HI/LO 77.6 / 78.2 77.5 / 78 76.9 / 77.4 76.4 / 76.9
C - Head Tube Angle (°) | HI/LO 65 / 65.5 65 / 65.5 65 / 65.5 65 / 65.5
D - Top Tube (MM) | HI/LO 574 / 573 598 / 597 626 / 625 655 / 654
E - Reach (MM) | HI/LO 440 / 445 460 / 465 480 / 485 500 / 505
F - Chain Stay (MM) | HI/LO 435 / 433 435 / 433 440 / 438 445 / 443
G - Wheelbase (MM) | HI/LO 1190 / 1189 1215 / 1213 1244 / 1243 1273 / 1272
H - BB Height (MM) | HI/LO 341 / 348 341 / 348 341 / 348 341 / 348
I - Standover Height (MM) | HI/LO 735 / 740 736 / 741 755 / 760 788 / 793
J - Stack (MM) | HI/LO 612 / 608 621 / 617 631 / 626 640 / 635
K - Head Tube (MM) | HI/LO 95 / 95 105 / 105 115 / 115 125 / 125
Rider Height (CM) 160-170 169-179 178-188 187-198
Fox Transfer (MM) 150 175 175 175
RS Reverb (MM) 150 175 200 200
Sizes:
SIZESmallMediumLargeX-Large
CM 160-170 169-179 178-188 187-198
INCHES 5'3" - 5'7" 5'7" - 5'10" 5'10" - 6'2" 6'2" - 6'6"

Specs

Frame Aluminum Optimum G04 140mm
Fork RockShox Lyrik Select+ Charger 3 RC2 Db 150 | 1T | 44Offset
Rear Shock RockShox SuperDeluxe Select R Db. Trunnion | 2T |185x52.5
Rims RaceFace AR30 | 30mm inner | TR
Hubs Front: Factor XD601SB/A | 6bolts | TA 15x110mm
Rear: Factor XDH62SB/A | 6bolts | TA 12x157mm | XD
Spokes Sapim Stainless 14G w/Nylok
Tires Front: Maxxis Minion DHF | 29x2.5wt | 3C MaxxTerra Exo+ TR
Rear: Maxxis Minion DHRII | 29x2.4wt | 3C MaxxTerra Exo+ TR
Bottom Bracket SRAM DUB | BSA | 73mm
Crankset SRAM GX Eagle | DUB | 32T | SuperBoost 157
Shifters SRAM GX Eagle | 12s
Rear Derailleur SRAM GX Eagle | 12s
Cassette/Freewheel SRAM XG1275 | 12s | 10-52T | XD
Chain SRAM GX Eagle | 12s
Brakes SRAM G2 RS | 4 Pistons
Rotors SRAM Centerline | 200mm
Handlebars RaceFace Aeffect R35 | B:35mm | R:20mm | W:780mm
Tape/Grips Devinci Performance | w/lock-on
Stem V2 Pro | B:35mm | L:40mm | 0°
Headset FSA Orbit | 1.5 | Zero Stack
Seatpost TranzX | 34.9mm | 1x Lever
Saddle SDG FLY MTN
Pedals Sold Separately

* Subject to change without notice.

Part Numbers

Option UPC MPN Store SKU
Alien Blue / Small 883385216514 FV23043225 210000035919
Goldland / Medium 883385216545 FV23043321 210000043894
