Details
Any trail. Every ride.
No excuse.

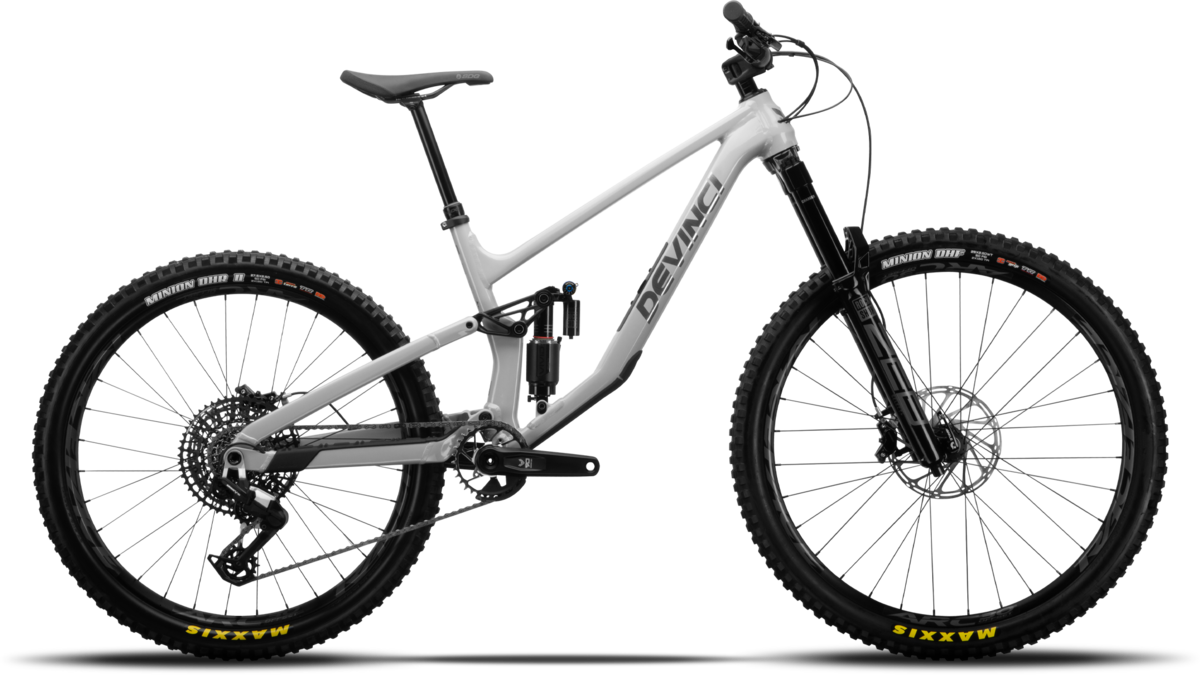

The everyday crusher of all trails. This Troy is our most advanced frame yet. But don’t let its Split Pivot design, streamlined profile and internal routing fool you. More than ever, Troy is built to shred. It has an updated geometry with size-specific chainstay lengths and comes stock with mixed wheels. It has more travel (150mm), so you’ll be looking for challenges instead of excuses. And its new ‘shed’ storage compartment in the downtube lets you pack all you need, without the need for a pack. Our quiver killer has a new set of instincts. Take one for a ride and see how far you can push it. You might never come back.
SRAM EAGLE 90 TRANSMISSION
A durable and high-performing package that won’t let down even the most demanding riders. The new Eagle 90 groupset from SRAM packs all the techs and attributes of their latest Transmission ecosystem into an ultra-robust premium mechanical drivetrain. The best in terms of performance and durability.
MIXED WHEELS
The Troy comes stock with mixed wheels. Get all the snappy handling of 27.5" with the added traction, rollover and momentum of a 29" wheel up front. Still prefer full 29? The Geo-Saver mullet flip chip located at the lower mount of the shock lets you rock a 29’’ rear wheel without sacrificing the bike’s intended geometry.
| Frame Size | Small | Medium | Large | X-Large |
|---|---|---|---|---|
| Seat Tube (MM) | 390 | 420 | 450 | 470 |
| Seat Angle (DEG) | 78.1 | 77.8 | 76.8 | 76.2 |
| Head Angle (DEG) | 64 | 64 | 64 | 64 |
| Top Tube (MM) | 568 | 594 | 631 | 656 |
| Reach (MM) | 440 | 460 | 480 | 500 |
| Chainstay (MM) | 435 | 435 | 440 | 445 |
| Wheel Base (MM) | 1206 | 1230 | 1260 | 1289 |
| BB Height (MM) | 343 | 343 | 343 | 343 |
| Standover Height (MM) | 708 | 708 | 708 | 708 |
| Stack (MM) | 612 | 622 | 631 | 640 |
| Head Tube (MM) | 95 | 105 | 115 | 125 |
| Rider Height (CM) | 160-170 | 169-179 | 178-188 | 187-198 |
Specs
| Frame | Aluminum Optimum G04 150mm |
|---|---|
| Fork | RockShox ZEB Select+ | 160mm | 44Offset |
| Rear Shock | Rockshox Vivid Select+ | 185x55 |
| Rims | RaceFace ARC30 29 | 30mm inner | TR |
| Hubs |
Front: DT Swiss 370 Classic | 15x110 Boost | 6bolts | 32H Rear: DT Swiss 370 Classic | 12x148 Boost |
| Spokes | Sapim Stainless 14G w/Nylok |
| Tires |
Front: Maxxis Minion DHF | 29x2.5WT | 3C | DD | MaxxGrip Rear: Maxxis Minion DHR II | 27.5x2.5WT | 3C | DD | TR | MaxxTerra |
| Bottom Bracket | SRAM DUB 73mm Threaded |
| Crankset | Sram Eagle 90 | DUB | 12s | 32T | 165mm |
| Shifters | SRAM Eagle 90 | 12s |
| Rear Derailleur | SRAM Eagle 90 | 12s |
| Cassette/Freewheel | SRAM XS1275 | T-TYPE | 12s | 10-52T |
| Chain | SRAM GX | T-Type | 12s |
| Brakes | SRAM Code Silver |
| Rotors | SRAM Centerline | 200mm |
| Handlebars | RaceFace ERA 35 | B:35mm | R:40mm | W:800mm |
| Tape/Grips | Devinci | w/lock-on |
| Stem | V2 Pro E | B:35mm | L:40mm | 0° |
| Headset | FSA Orbit | 1.5 | Zero Stack |
| Seatpost | SDG Tellis 31.6mm |
| Saddle | SDG BELAIR 3.0 |
| Pedals | Sold separately |
* Subject to change without notice.
Part Numbers
| Option | UPC | MPN | Store SKU |
|---|---|---|---|
| Lustré / Large / 29-inch | 883385236826 | FV24090432 | 210000045270 |
