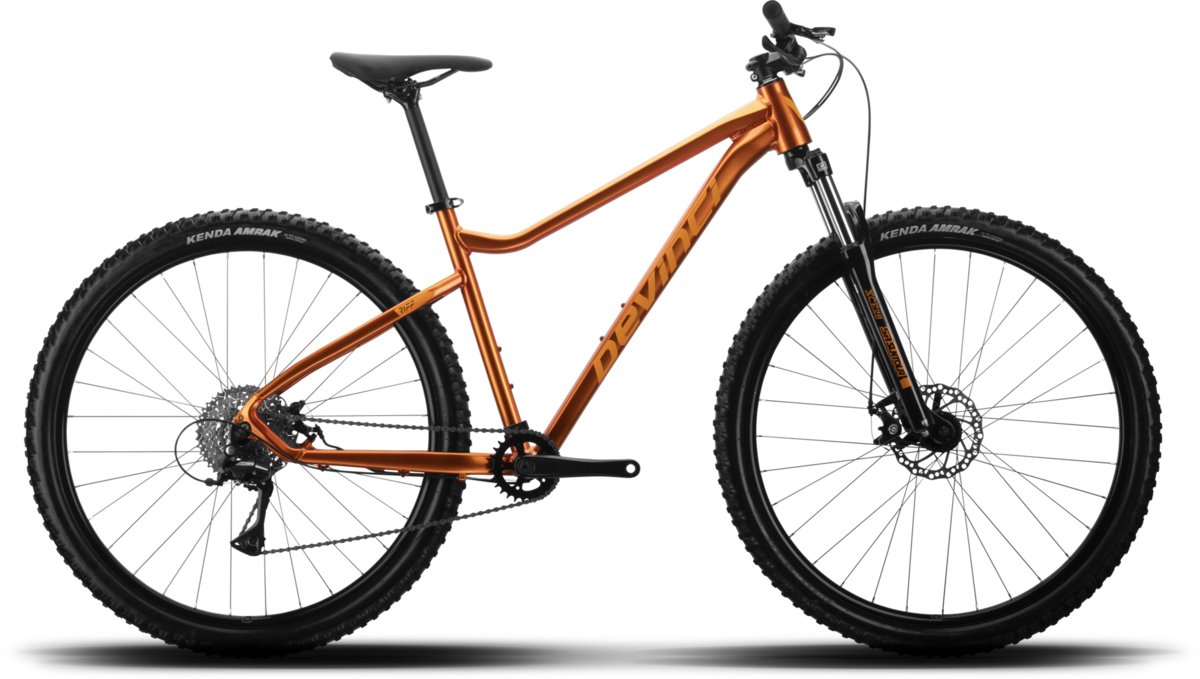

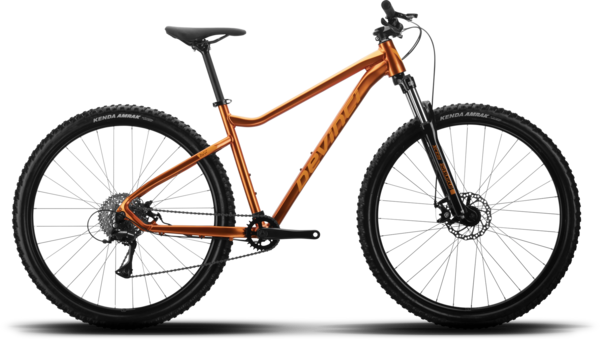

Devinci Riff Acera 8s
$759.00
$949.00
Details
XC SPORT
Whether it’s Monday’s concrete commute or a weekend’s worth of unpaved exploration, Devinci’s new Riff 29 is a truly versatile accomplice. The anatomy of this sporty XC starts with a bomber aluminum build, coupled with a capable 29” stance that makes easy work of roots and rocks, as well as curbs, potholes, stairs and wayward pedestrians. With a lifetime warranty and a sticker price that won’t crimp your accounts, the Riff is ready for whatever you got.
| Frame Size | X-Small | Small | Medium | Large | X-Large |
|---|---|---|---|---|---|
| Seat Tube (MM) | 380 | 400 | 450 | 480 | 530 |
| Seat Angle (DEG) | 73 | 73 | 72.5 | 72 | 72 |
| Head Angle (DEG) | 69.5 | 69.5 | 69.5 | 69.5 | 69.5 |
| Top Tube (MM) | 565 | 575 | 595 | 615 | 635 |
| Reach (MM) | 378 | 388 | 399 | 410 | 424 |
| Chainstay (MM) | 445 | 445 | 445 | 445 | 445 |
| Wheel Base (MM) | 1082 | 1092 | 1107 | 1121 | 1142 |
| BB Height (MM) | 317.5 | 317.5 | 317.5 | 317.5 | 317.5 |
| Standover Height (MM) | 690 | 704 | 740 | 758 | 790 |
| Stack (MM) | 611 | 611 | 621 | 630 | 649 |
| Head Tube (MM) | 100 | 100 | 110 | 120 | 140 |
| Rider Height (CM) | 147-160 | 157-170 | 168-180 | 178-187 | 185-193 |
Specs
| Frame | Aluminum Optimum G02 |
|---|---|
| Fork | SR Suntour XCE DS | 100mm |
| Rims | V2 Comp db | 24mm inner |
| Hubs |
Front: Formula Disc | QR 9x100mm Rear: Formula Disc | QR 10x135mm |
| Spokes | Stainless 14G |
| Tires | Kenda Amrak | 29x2.40 |
| Crankset | Alloy 3pcs | 28T Narrow Wide |
| Shifters | Shimano Altus M315 | 8s |
| Rear Derailleur | Shimano Acera M30208 | 8s |
| Cassette/Freewheel | Sunrace | 8s | 11-40T |
| Chain | KMC Z8 | 8s |
| Brakes | Tektro MD-M280 Aries | Mechanical |
| Rotors | Tektro | 160mm |
| Handlebars | V2 Comp | B:31.8mm | R:15mm | W:720mm |
| Tape/Grips | Kraton |
| Stem | V2 Comp | B:31.8mm | 0° |
| Headset | FSA No.57SC-1 |
| Seatpost | Devinci | 27.2mm |
| Saddle | Devinci |
| Pedals | Wellgo M095 |
* Subject to change without notice.
Part Numbers
| Option | UPC | MPN | Store SKU |
|---|---|---|---|
| Dream Orange / Medium / 29-inch | 883385217238 | FV23059317 | 210000043896 |
| Dream Orange / Large / 29-inch | 883385217252 | FV23059417 | 210000045663 |
