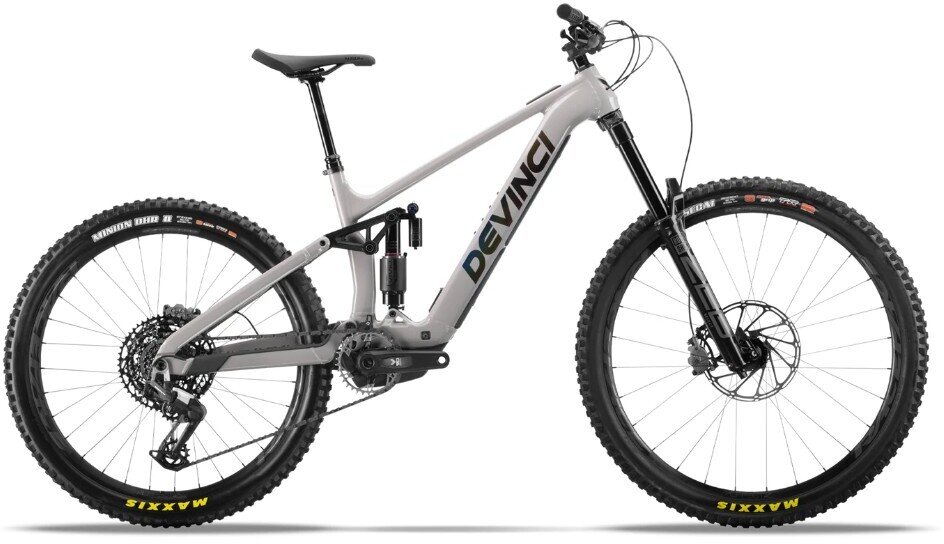

Devinci E-Spartan Lite

Light assist. Burly capability.
Big bike energy, now electrified. Tame the burly without holding back. The E-Spartan Lite is built to turn turbulence into confidence. Made in Canada and powered by German precision, its chassis hides Bosch’s Performance Line SX drive system and a 400Wh battery. With 165mm of rear travel and 170mm up front, a don’t-hold-back attitude, and Devinci’s lifetime warranty, the E-Spartan Lite is built to perform where it matters most…on burly territory.

FRAME TECH SPECS
Rear travel 165 mm
Front travel 170 mm
Wheel size Mixed-Wheel (27,5'' rear & 29'' front)
Rear tire clearance 27,5'' x 2.6”
Rear hub spacing 12 x 148 Boost
Max & min chainring clearance 36T - 32T
Chainline 55 mm
Derailleur hanger UDH™
Caliper mount 200 mm Post Mount
Max rear rotor size 220 mm
Seat tube diameter 31.6 mm ID / 34.9 mm OD
Dropper post length M ? 170 mm / L ? 200 mm / XL ? 230 mm
Seatpost max insertion M ? 270 mm / L ? 300 mm / XL ? 340 mm
Headset Top ZS44 | Bottom ZS56
Cable routing Internal
Rear shock dimension Trunnion | 205 x 65 mm
Rear shock hardware Top NA | Bottom 35 x 10 mm
Linkage bearing type Enduro™ double-lip sealed
Fork dimensions Axle-to-Crown measurement 586 mm / Offset 44 mm
Chain guide mount Low Direct Mount
Drive unit Bosch Performance Line SX | Smart System
Battery Bosch CompactTube 400 - 400Wh
Frame material Aluminium 6061-T6 | Optimum G04
UP TO 67 KM ON A SINGLE CHARGE

RANGE
A full charge will get you approximately 2 hours of riding, 1000 meters of climbing, and an average range of 40 km. Using mainly the ECO mode, the battery will deliver up to 67 km of range. Using primarily the TURBO mode, the system will provide a range of approximately 28 kilometers. The average speed, the assist mode, the weather, the wind, the rider's weight, and the frequency of stops are all factors that play a role in the energy consumption of the battery. For a more accurate estimate of the available range, use the Bosch Range Assistant.
